H-800

public://uploads/media/h-800.png

H-800

Mueller®  Inserting Valves -  for 4", 6" and 8" cast  iron pipe.

Mueller Inserting Valves are designed to  be used on cast iron  pipe only. Each valve consists of a two-piece sleeve and a valve body. The valve mechanism is identical to Mueller AWWA Gate Valves. Inserting valves are furnished with conventional pack­ ing and a 2" square wrench nut . A handwheel can be furnished when specified.  When ordering, specify direction of operation. This is usually left (counterclockwise). Where previous valves open right (clockwise), new valves should open in the same direc­ tion.  (Wrench  nut  on  valves  that open to the right are painted red for identification.)

  • H-800 Inserting valve - 200 psi (1379 kPa) maximum  working pressure
  • Sizes*: 4", 6", 8" (fo r cast iron pipe only)

Operation Manual    Valve Box Guide    Inserting Valve

Equipment  to be selected:

Size Weight lb (kg)

4"

 316 (143)

6"

 528 (240)

8"

770 (349)
  • 1-Drilling machine, hand or power operated, from  section A3
  • 1-Set of basic inserting valve equipment from page E2-11
  • 1-Separate set of special inserting valve equipment for each size of valve to be inserted, from page E2-12

Order by quantity, size, catalog number, direction of opening and method of operation (wrench nut or handwheel).

*Nominal sizes. Size of valve corresponds to size of main. All inserting valves have full-size seat openings.

Basic equipment used to install Mueller® Inserting Valves

One set of basic equipment is  re­ quired to install all sizes of Mueller Inserting  Valves .
Select basic equipment according to the type of Mueller Drilling Machine that will be used to install the insert­ ing valve. (Machines are selected from section A3.)

  • H -811 Basic equipment - used with CL-12 Drilling   Machine
  • H-810 Basic Equipment - used with CC-25 or C1-25 Drilling Machine
Catalog Number Weight lb (kg)
H-811 700 (318)
H-810 700 (318)

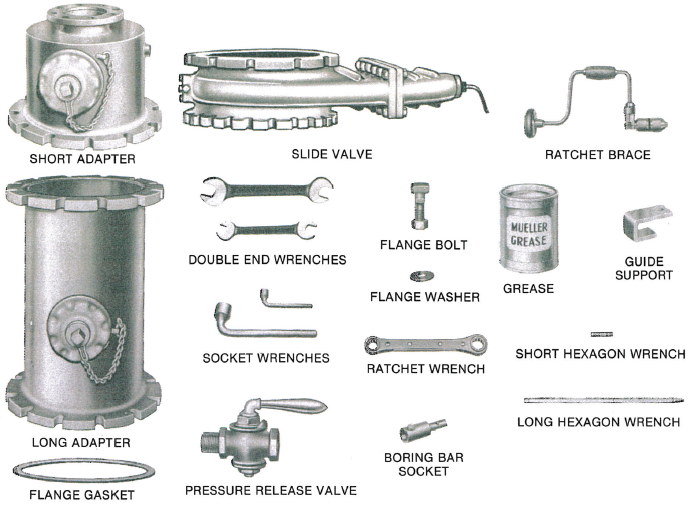

Major parts comprising basic equipment



Part Numbers

Part

For H-811

For H-810

Short adapter

80594

80594

Long adapter

80592

80592

Slide valve

83542

83542

Flange gasket (3)

79740

79740

Flang e washers (36)

92576

92576

Flange bolts (36)

36446

36446

Double end wrench

96536

96536

Double end wrench

58196

58196

Socket  wrench (small)

33124

33124

Socket wrench (large)

33125

33125

Ratchet wrench

40233

40233

Ratchet brace

51963

51963

He x wrench (short)

40327

40327

He x wrench (long)

33113

33113

Boring bar socket

83780

80601

Guide supports (2)

40280

40280

Grease 1 Lb

90968

90968

Pressure release valve (2)

'I." H-11055

' I," H-11055


Special equipment used to install each size of Mueller® Inserting Valve

A separate set of special equipment is required  to  install  each size of Mueller Inserting Valve.

Select special equipment according to the size of  valve  to be installed  and the catalog number of the basic equipment to be used. (Basic equip­ ment is selected from page E2-11.)

  • H-811 Special equipment - used wit h CL-12 Drilling Machine and H-811 Basic equipment
  • H-810 Special equipment - used with CC-25 or C1-25 Dri lli ng Machine and H-810 Basic Equipment, Sizes *: 4" , 6 ", 8 "

Shipping Weights

Catalog Number

Size

Weight

lb (kg)

H-81 1 or H-810

4"

185 (84)

6"

200 (91)

8"

195 (88)
*Sizes correspond to the sizes  of Mueller® Inserting Valves Available.

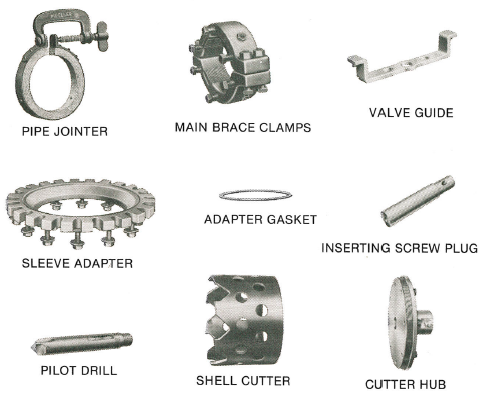

Major parts comprising special equipment





Part

Part numbers by calalog number and size of spacial equipment

For H-811

For H-810

4"

6"

8"

4"

6 "

9"

Pipe jointers (2)

H -10728

H-10728

H-10728

H-10 728

H-10728

H-1072 8

Main brace clamps (2)

88197

88151

88187

88197

88151

88187

Sleeve adapter

80595

80596

-

80595

80596

-

Gasket

79741

79742

-

79741

79742

-

Pilot  dril l (carbide tipped)

89357

89358

89359

89353

89353

89354

Shell cutter

82995

82994

80699

82995

82994

80699

Cutter hub

83685

83682

83689

54653

33107

33182

Valve guide

80598

80600

80600

80598

80600

80600

Inserting screw plug

79768

79769

79700

79768

79769

79700

Optional carbide tipped shell cutter

An optional, carbide tipped shell cutter is available for use on cement­lined cast iron pipe.  It is ordered separately.





Part

Part number by catalog number and size of special equipment

For H-811

For H-810

4"

6"

8"

4"

6"

8"

Carbide tipped shell cutter

581313

581314

581315

581313

581314

581315

Order special equipment by size, catalog number and specify "Special Equipment" - order parts by quantity and part number.

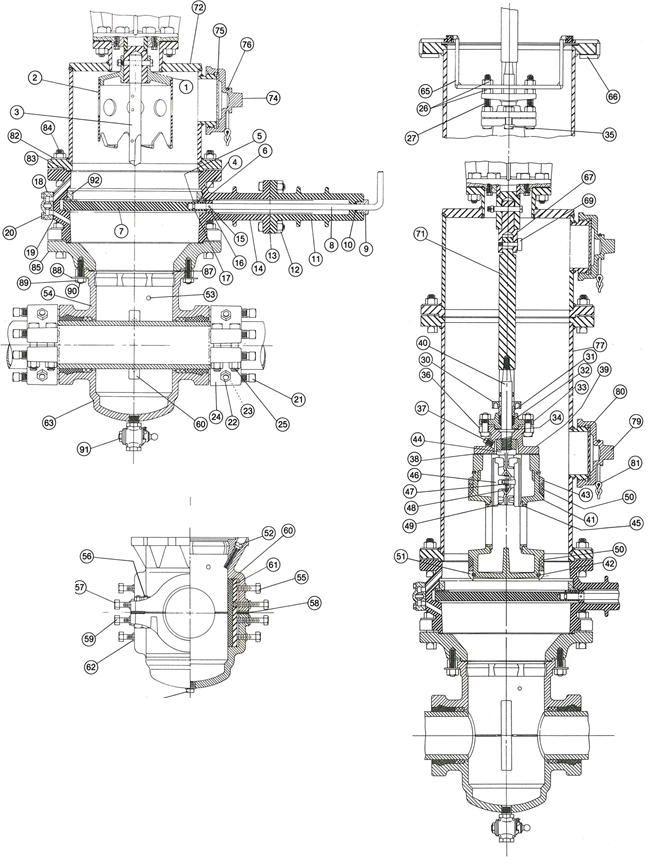

Parts list - Mueller®  Inserting Valves and equipment

For parts list please see page E2-23 in the H-800 parts guide.
